Wired Interrupt Foldback Ifb System XLR-3M Connection customized

Product Details

Brand Name: TELIKOU

Payment & Shipping Terms

Minimum Order Quantity: 1 Bushel

Packaging Details: in carton

Delivery Time: 5-8 days

Payment Terms: L/C,T/T

Get Best Price

Product Details

Product Description

Highlight:

Type:	Wired	Wireless Or Wired:	Wired
Brand Name:	TELIKOU	Connection:	XLR-3M
Maximum Input Level:	+24dBu	Product Type:	Audio Processing System
Maximum Output Level:	+24dBu	Output Channels:	8
Dynamic Range:	>110dB	Thd+N:	<0.005%
Weight:	6 Lbs	Dimensions:	19
Input Channels:	8	Frequency Response:	20Hz-20kHz
Power Requirements:	100-240V AC, 50/60Hz	Compatibility:	Universal

Type:	Wired
Wireless Or Wired:	Wired
Brand Name:	TELIKOU
Connection:	XLR-3M
Maximum Input Level:	+24dBu
Product Type:	Audio Processing System
Maximum Output Level:	+24dBu
Output Channels:	8
Dynamic Range:	>110dB
Thd+N:	<0.005%
Weight:	6 Lbs
Dimensions:	19
Input Channels:	8
Frequency Response:	20Hz-20kHz
Power Requirements:	100-240V AC, 50/60Hz
Compatibility:	Universal

Wired Interrupt Foldback Ifb System XLR-3M Connection customized

Product Description

Thank you for choosing TELIKOU intercom products. During the production of a program for transmission or recording, a director or producer frequently needs to cue the performing talent. This is done using Interrupt FoldBack (IFB), a type of simplex intercom for sending program and interrupt (microphone / cue) audio on “IFB” lines for the talent to monitor.

TELIKOU IFB equipment includes PTM-404, IFB-04M, IFB-08M and BT-01. IFB-04M and IFB-08M have built-in power supply. IFB-04M equals the combination of MA-704 and PS-702. IFB-08M equals the combination of Clear-com MA-704, AX-704 and PS-702. PTM-404 and BT-01 are equal to PIC-4744 and TR-50.

PTM-404 provides 4 program inputs and 4 outputs to talent receivers. A PTM-404 unit is required for every four talent positions.

1. Talent Connectors (XLR-3M)

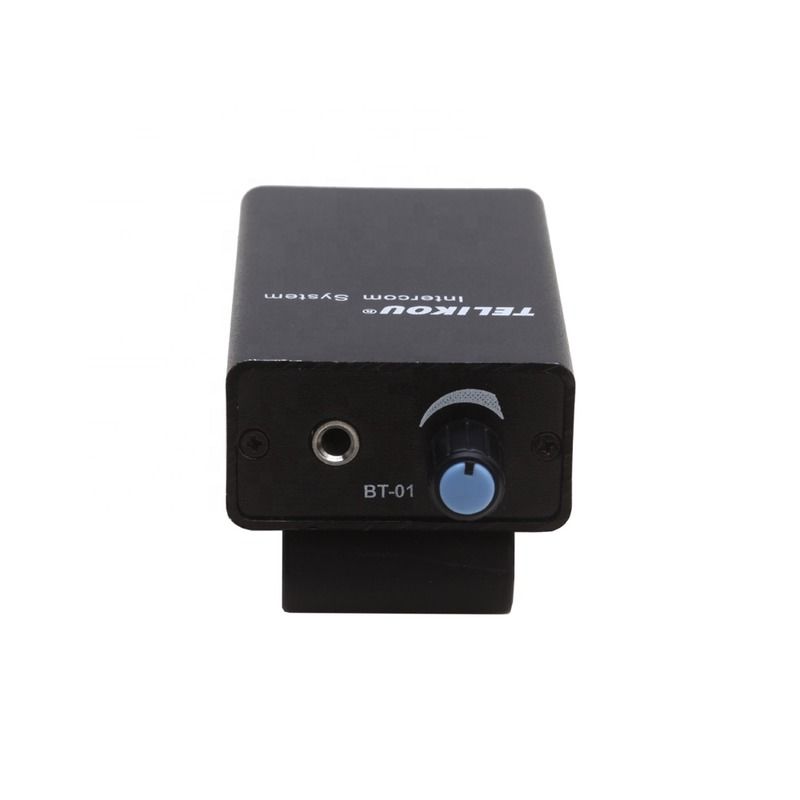

Outputs to talent receivers TELIKOU BT-01 or Clear-Com TR-50s or RF

wireless IFBs

1 - Common

2 - 24-30VDC

3 - Audio

2. Power

1 - Common

2 - 24-30VDC Input

3 - Null

Wired Interrupt Foldback Ifb System XLR-3M Connection customized 0
