Name: Telecommunication Wireless Belt Pack For TV Broadcast Equipment
Brand: Telikou Technologies Co., Ltd.
SKU: BK-2400
Price: 144.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Telikou

Model Number: BK-2400

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: $287.00(>=1 Pieces)

Packaging Details: in carton within 7 days

Delivery Time: 5-8 days

Payment Terms: L/C,T/T

Supply Ability: 1000 Piece/Pieces per Month

Get Best Price

Product Details

Product Description

Highlight:

Type:	Broadcast Equipment	Warranty:	12 Months
COLOUR:	Black	Place Of Origin:	China
Brand Name:	Telikou	Model Number:	BK-2400
Application:	Telecommunications	Wireless Or Wired:	Wireless
Frequency:	2.4GHz

Type:	Broadcast Equipment
Warranty:	12 Months
COLOUR:	Black
Place Of Origin:	China
Brand Name:	Telikou
Model Number:	BK-2400
Application:	Telecommunications
Wireless Or Wired:	Wireless
Frequency:	2.4GHz

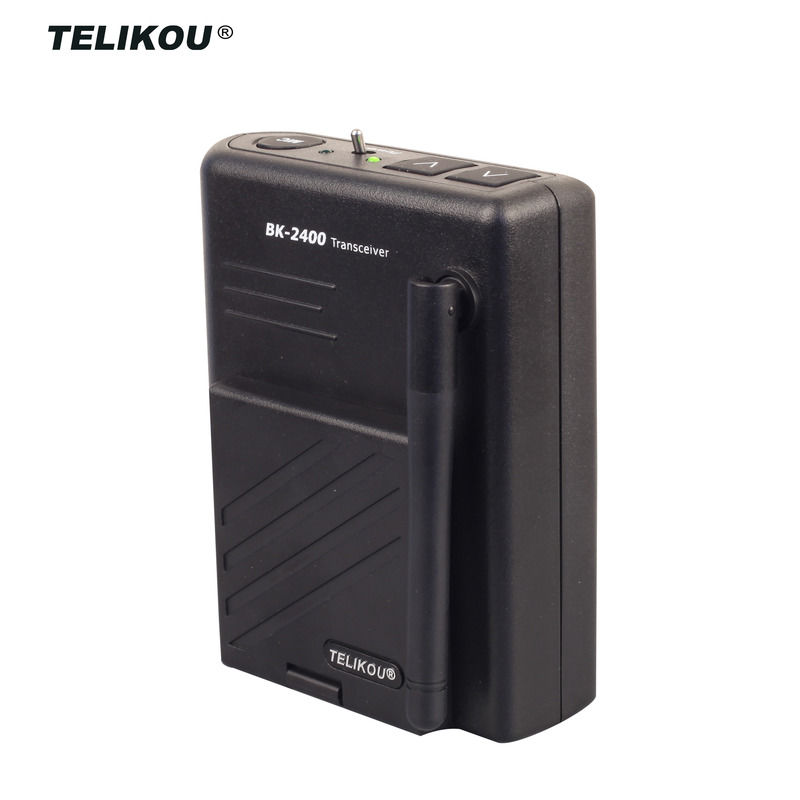

Telecommunication Wireless Belt Pack For TV Broadcast Equipment

Telecommunication Wireless Belt Pack For TV Broadcast Equipment 0

Introduction

Thank you for choosing TELIKOU Wireless intercom product.

BK-2400 belt pack works with TELIKOU Wireless Intercom main station MDS-400. It adopts 2.4GHz frequency. BK-2400 is full two-way audio transmitter and receiver. It is suitable for stage

communication, outside broadcast van, show, and other applications where wireless communication is required.

Technical Specification

Radio Specifications

1. General

1) RF Input/output Impedance is 50Ohms

2) RF 75CHs Frequency Hopping Spread Spectrum(FHSS) in RF Operation Frequency Band

3) Transmitting Modulation Data Rate is 576Kbps

4) Modulation is GFSK,BT=0.6

5)RF Operation Frequency Range is from 2401.808203~2479.398926MHz,

Frequency Space is

891.871 KHz. 350m in opened area.

2. Transmitting

Normal Transmitting Power (NTP): 20+/-4 dBm

Frequency Deviation: +/-190 KHz

Frequency Offset: +/-10KHz(CW Mode)

RF Output 20dBc Bandwidth: <=- 30dBm

RF 1st & 2nd Order Harmonic Output Level: <=- 30dBm

Test Conditions:

1) NTP measurement is continued transmitting mode, equipment setup are RBW=1MHz,

VBW=3MHz, Zero span, Maxhold, Sweep=auto

2) Spurious measurement is burst transmit mode. Equipment setup are RBW=100kHz,

VBW=100kHz, Span=100MHz, Maxhold, Sweep=auto

3) 20dB BW measurement is continued transmit mode. Equipment setup are RBW=20kHz,

VBW=20Hz,Span=2MHz, Maxhold, Sweep=auto

3. Receiving

Receive Sensitivity@CW BER=0.1% -96dBm

Please Not:

2.4GHz Frequency is running on high frequency. It is weak on penetration.
